    • UHF Chassis

    31,-
    -+

    UHF Chassis

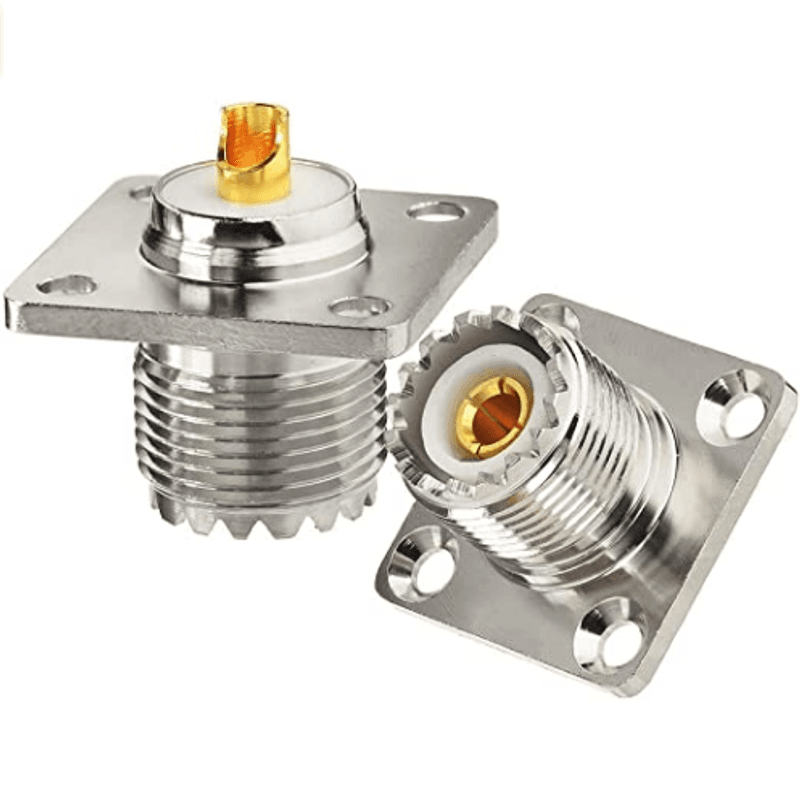

    • Firkant

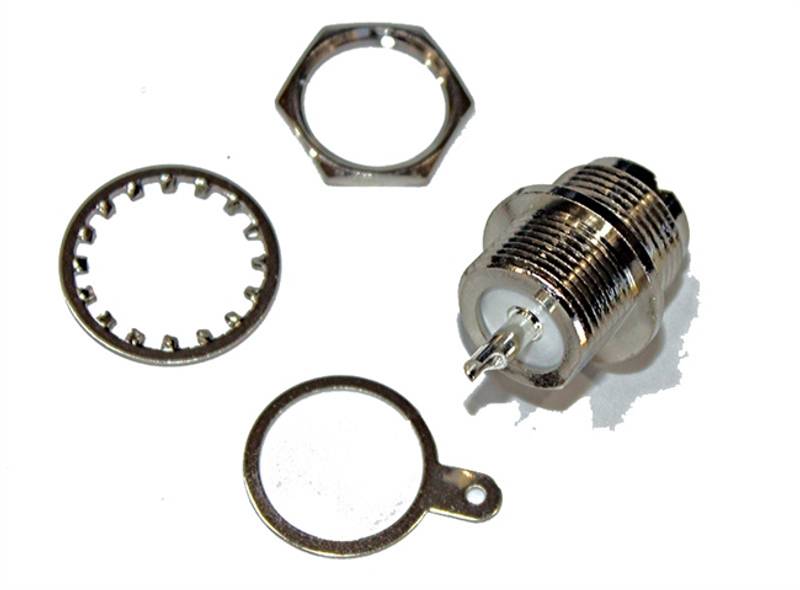

    • Rund

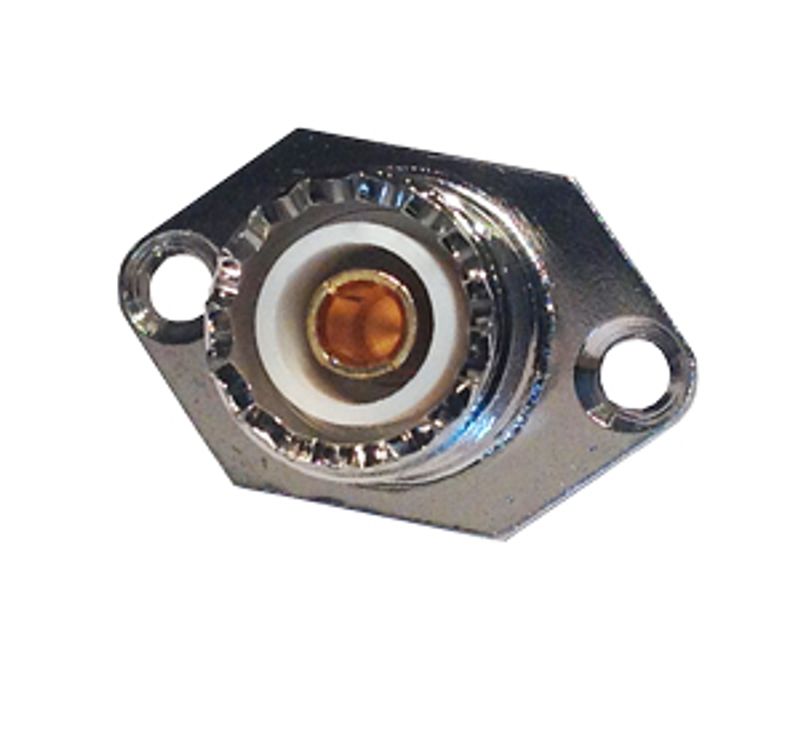

    • Oval

    Features and Benefits

    • Optional reducing adapters accommodate a wide range of popular coaxial cables
    • Solder termination types require no special assembly tools
    • Crimp termination types provide a lower cost installation method
    • Large-size threaded coupling is a rugged design
    • Non-demanding specifications and low cost

    Applications

    • Antennas
    • Military
    • Public Address Systems
    • Low-Frequency Applications

    UHF Chassis Specifications

    Electrical
    Impedance 50 Ohm
    Frequency Range DC-300MHz; extended range to 1 GHz
    Voltage Rating 500 volts peak

    Environmental
    Temperature Range
    Mica-Filled Phenolic Insulators -55⁰C to 149⁰C
    TFE Insulators -65⁰C to 165⁰C
    Copolymer of Styrene and Polystyrene Insulators -55⁰C to 85⁰C
    Weatherproof Except as noted, all UHF are non-weatherproof


    Mechanical
    Mating 5/8-24 threaded coupling
    Cable Affixment Braid solder, set screw, clamp and crimp

    These characteristics are typical and may not apply to all connectors.
