BNC Connector

40,-

Applications Antennas Telecom Automotive Computers/LANs Medical Equipment Satcom Base Stations Cable Modems Instrumentation Mil-Aero BNC 50 Ohm Specifications Electrical   Impedance 50 Ohm Frequency Range 0-4 GHz with low reflection VSWR   M30912 Straight Connectors 0-4 GHz 1.30 Max M30912 Right Angle Connectors 0-4 GHz 1.35 Max Dielectric Withstanding Voltage  1500 VRMS  Voltage Rating 500V rms Insulation Resistance 5000 MΩ min Contact Resistance     Center Contact 1.5 mΩ Outer Contact 0.2 mΩ Braid to Body 0.1 mΩ RF Leakage 55 dB min @ 3GHz Insertion Loss 0.2 dB max @ 3 GHz   Environmental   Temperature Range   TFE Insulation -65⁰C to +165⁰C Copolymer of Styrene -55⁰C to 85⁰C Clamp Gasket Sealing Clamp-style assembly Heat Shrink Tubing Crimp-style assembly Hermetic Seals Pass helium leak test of 2 x 10-8 cc/sec Shock Mil-STD-202, Method 202 Vibration Mil-STD-202, Method 204 (test cond. D) Moisture Resistance MIL-STD-202 Method 106 Corrosion  Mil-STD-202, Method 101 ( test cond. B) Temperature Cycling Mil-STD-202, Method 102 (test cond. D) Altitude MIL-STD-202 Method 105 (test cond. C)   Mechanical   Mating 2-stud bayonet coupling per M39012 Cable Affixment (Braid or Jacket)   All Crimps Hex braid crimp Clamps Screw-thread nut and braid clamp Cable Affixment (Center Conductor)   Crimps Crimp or solder All Others Solder only Captivated Contact   All Crimps Yes Others Where specified Cable Retention   All Crimps 20-100 lbs Clamps 20-70 lbs

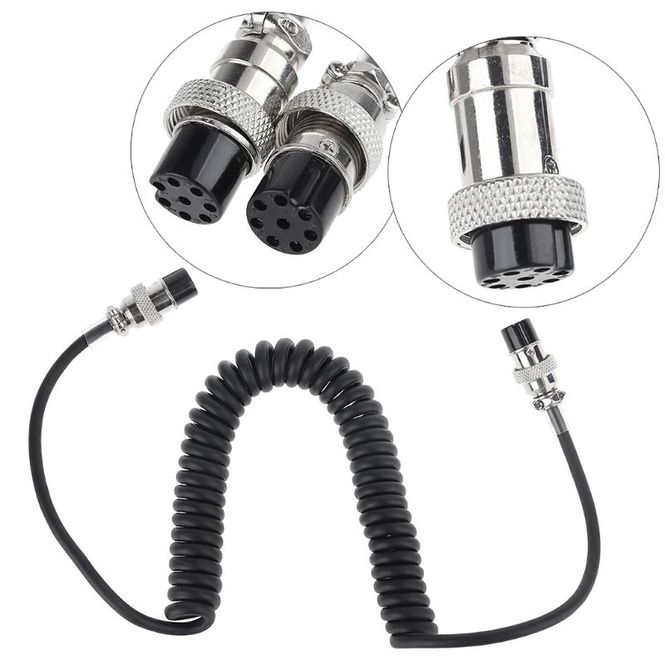

Mikrofon plugger

4/8 Pin Male/Female Mini XLR Audio Microphone Chassis Mount Kabel Connector Socket Item specifics: Brand new and high qualit connector for microphone cables for Hamradio Ideal for live sound PA stage and studio recording applications and Hamradio     Spec: Type: DIN Application: Automotive Gender: female and male Coupling: Threaded coupling Shell material: Zinc alloy with nikelplate Contact material: copper(silverplated/gold) Termination: Solder Working Temperature: -20℃ ~ +85℃ Cable diameter: 7.5-8.5mm NO.of contacts:  4pin 8pin Rated current/voltage: 7A-125V Solder cup mouth aperture: 1.6 Solder inter diameter: 2.45

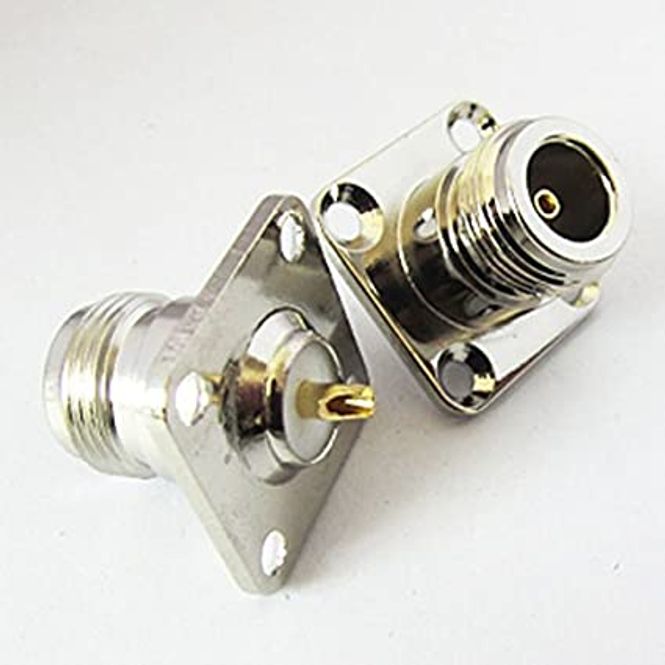

N Chassis

28,-

N Chassis Firkant Rund Oval Features and Benefits Optional reducing adapters accommodate a wide range of popular coaxial cables Solder termination types require no special assembly tools Crimp termination types provide a lower cost installation method Large-size threaded coupling is a rugged design Non-demanding specifications and low cost Applications Antennas Military Public Address Systems Low-Frequency Applications UHF Chassis Specifications Electrical   Impedance 50 Ohm Frequency Range DC-300MHz; extended range to 1 GHz Voltage Rating 500 volts peak   Environmental   Temperature Range   Mica-Filled Phenolic Insulators -55⁰C to 149⁰C TFE Insulators -65⁰C to 165⁰C Copolymer of Styrene and Polystyrene Insulators -55⁰C to 85⁰C Weatherproof Except as noted, all UHF are non-weatherproof     Mechanical   Mating 5/8-24 threaded coupling Cable Affixment Braid solder, set screw, clamp and crimp   These characteristics are typical and may not apply to all connectors.

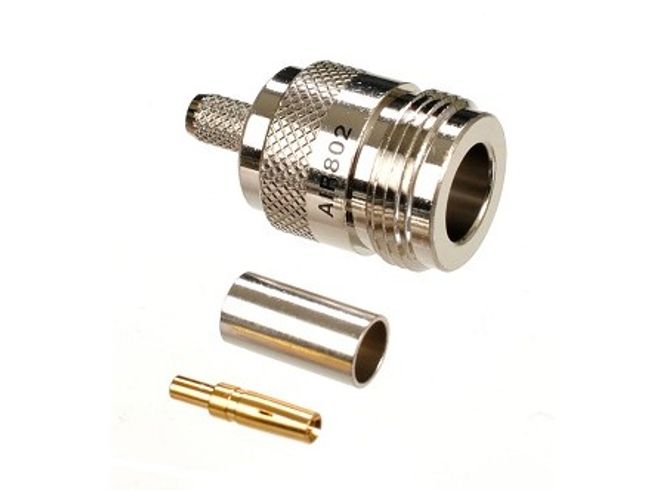

N Connector Hun

48,-

N Connector Hun RG58/LMR195 RG213/LMR400 Physical Characteristics Connector N Gender Female Cable Type RG58/PL259 (LMR-195 LMR-400) Connector Plating Nickel Contact Plating Gold Attachment Method Crimp Sleeve Performance Impedance 50 Ohm Environmental Compliant RoHS Yes

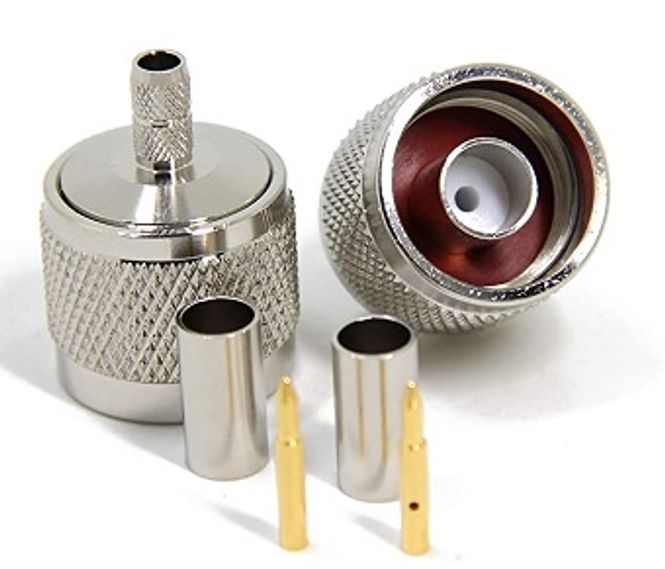

N connector Press

44,-

N connector Press RG58/LMR195 PL259/LMR240 PL259/LMR300 RG213/LMR400 Spec   Gender Plug Orientation Straight Termination Style Cable - Crimp Impedance (Ohms) 50 Body Finish White Bronze Body Material Brass Contact Finish Gold Contact Material Brass Contact Termination Style Crimp Insulator Material PTFE Cable Group C Cable Type Times Microwave LMR-195, 240 300, 400 Coupling Mechanism Threaded Max Frequency (GHz) 6 Polarity Standard Thread Direction Standard Min. Temp. (Celsius) -65 Max. Temp. (Celsius) 165 Mating Cycles 500 Weight (Grams) 0.50

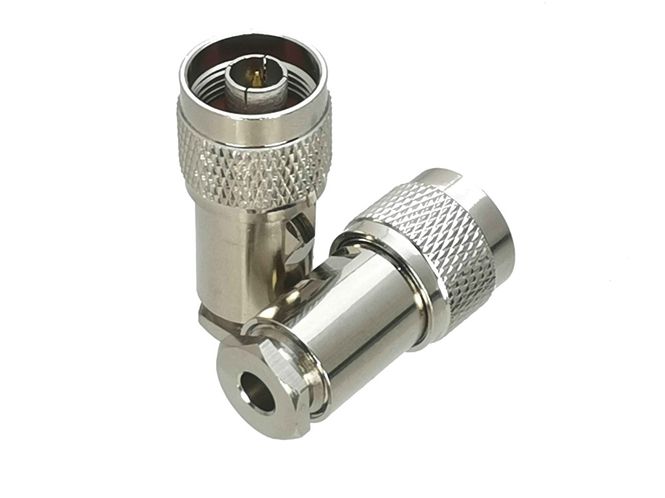

N Connector Skru

44,-

N Connector Skru RG58/LMR195 PL259/LMR240 PL259/LMR300 RG213/LMR400 Spec   Gender Plug Orientation Straight Termination Style Cable - Crimp Impedance (Ohms) 50 Body Finish White Bronze Body Material Brass Contact Finish Gold Contact Material Brass Contact Termination Style Crimp Insulator Material PTFE Cable Group C Cable Type Times Microwave LMR-195, 240 300, 400 Coupling Mechanism Threaded Max Frequency (GHz) 6 Polarity Standard Thread Direction Standard Min. Temp. (Celsius) -65 Max. Temp. (Celsius) 165 Mating Cycles 500 Weight (Grams) 0.50

Overgang

48,-

Overgang Coaxial Connector Adapter: Coaxial connector for easy use of hand-held walkie-talkie in the car. SMA-Female Connector / SMA-M Male Connector / BNC Connector support various hand-held walkie-talkie. SO239 Male Connector support male antenna interface of the car radio. SMA-Female (suit for baofeng UV-5R UV-82 BF-888S Kenwood and so on SMA-Male(suit for TYT TH-UV8000D/E MD-380 Wouxun and so on BNC (suit for Kenwood TK-100 Icom IC-V8 and so on SL16 Male(suit for Yaesu FT-7900R FR-8900R and so on All 50 Ohm To SMA Female Connector applications Handheld Walkie Talkie Model: Kenwood: TK-360,TK-370,TK-370G,TK-372,TK-372G,TK-3100,TK-3140,TK-3160,TK-3170,TK-3180,TK-3200,TK-3202,TK-3207 BAOFENG BF-666s,BF-777s,BF-888s,UV-5R,UV-5RA, 5RC,5RD,UV-6,UV-8,5RE plus,BF-F8+,UV-B6,UV-B5,BF-K5,BF-A5,BF-A58,UV-A52,UV-82,UV-XR,UV-9R PLUS,BF-UVB3 Plus DM-5R Plus HYT TC-268,TC-268S,TC-368,TC-368S,TC-370S,TC-500-TC-500S for LINTON LT-3288,LT-6288,LT-3188,LT-2188,LT-3260,LT-3268,LT-6188 for PUXING X-777,PX-777Plus,PX-666,PX-888,PX-888K Wouxun KG-UVD1P For most Antenna SMA-Female interface handheld radio. To SMA Male Connector applications Handheld Walkie Talkie Model: Kenwood 71A for Yaesu VX7R VX6R VX5R VX2R VX1R for Lingtong LT6288, LT6600, LT6100PLUS, TYT TH-UV800D/E MD-380 MD-390 Wouxun KG-UV6D,KG-UV8D,KG-UV9D etc For most Antenna SMA-Male interface handheld radio. To BNC Connector applications Handheld Walkie Talkie Model: For ICOM Series: IC-V8 IC-V82 IC-V85 For Kenwood TK100 TK200 TK220 TK300 TK310 TK320 TK208 TK308 TK22AT TK42AT TH28A TH48A TH78A TH45A TH25A TH26A TH46A For Marantz C150 C450 HX260 HX270 For Motorola Series: HT440 HT90 CP500 CP520 etc. 4. To SL16 UHF Male Connector applications for antenna UHF interface car radio.

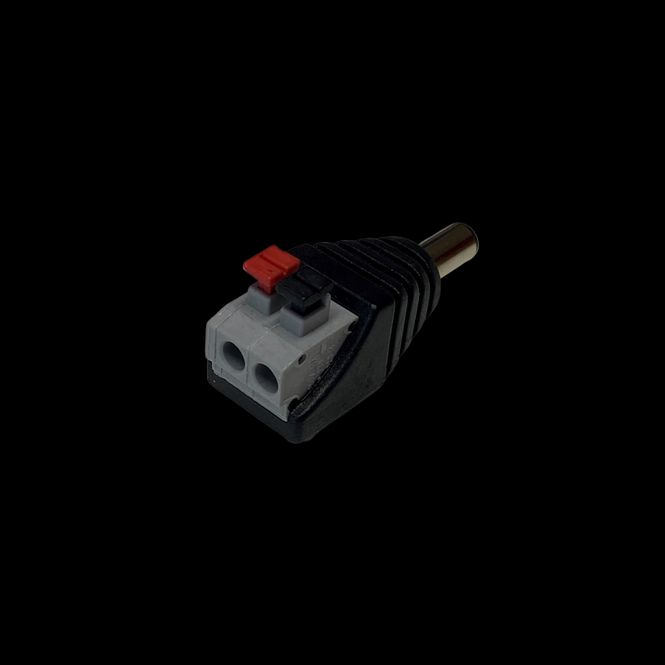

Power Plugg

40,-

Brand new and high quality Simply & Professional appearance for power cabling Easier for camera and LED light , Modem etc strip installation, save time and more securer cable connection No electrical tap, No splicing, no crimping, but only a small push-down External diameter of the plug: 2,1mm 2,5mm

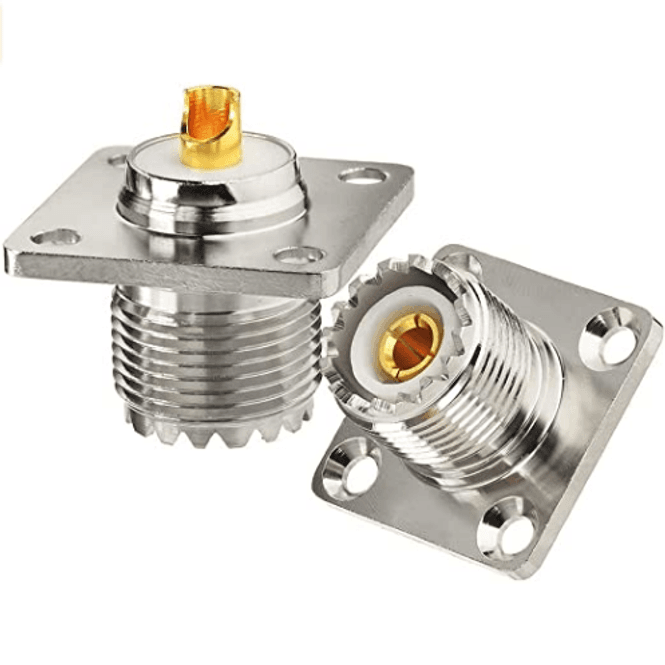

UHF Chassis

31,-

UHF Chassis Firkant Rund Oval Features and Benefits Optional reducing adapters accommodate a wide range of popular coaxial cables Solder termination types require no special assembly tools Crimp termination types provide a lower cost installation method Large-size threaded coupling is a rugged design Non-demanding specifications and low cost Applications Antennas Military Public Address Systems Low-Frequency Applications UHF Chassis Specifications Electrical   Impedance 50 Ohm Frequency Range DC-300MHz; extended range to 1 GHz Voltage Rating 500 volts peak   Environmental   Temperature Range   Mica-Filled Phenolic Insulators -55⁰C to 149⁰C TFE Insulators -65⁰C to 165⁰C Copolymer of Styrene and Polystyrene Insulators -55⁰C to 85⁰C Weatherproof Except as noted, all UHF are non-weatherproof     Mechanical   Mating 5/8-24 threaded coupling Cable Affixment Braid solder, set screw, clamp and crimp   These characteristics are typical and may not apply to all connectors.

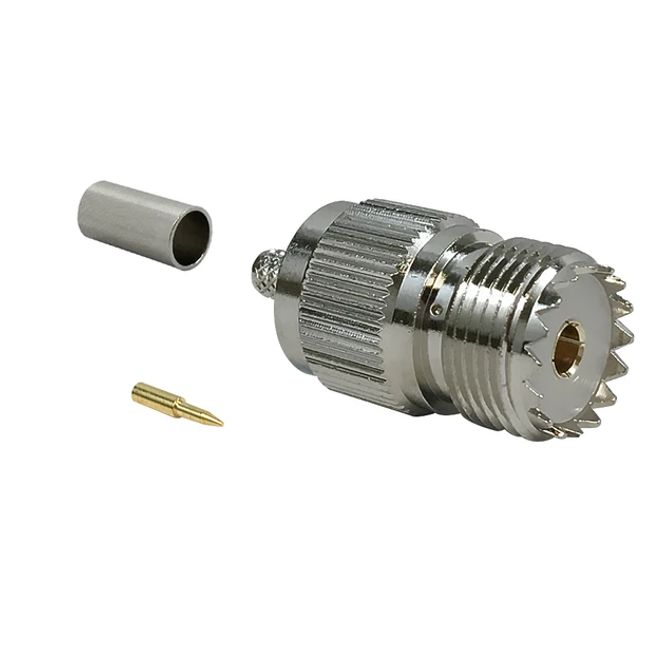

UHF connector Hun

36,-

UHF connector Hun RG58/LMR195 RG213/LMR400 Physical Characteristics Connector UHF Gender Female Cable Type RG58/PL259 (LMR-195 LMR-400) Connector Plating Nickel Contact Plating Gold Attachment Method Crimp Sleeve Performance Impedance 50 Ohm Environmental Compliant RoHS Yes

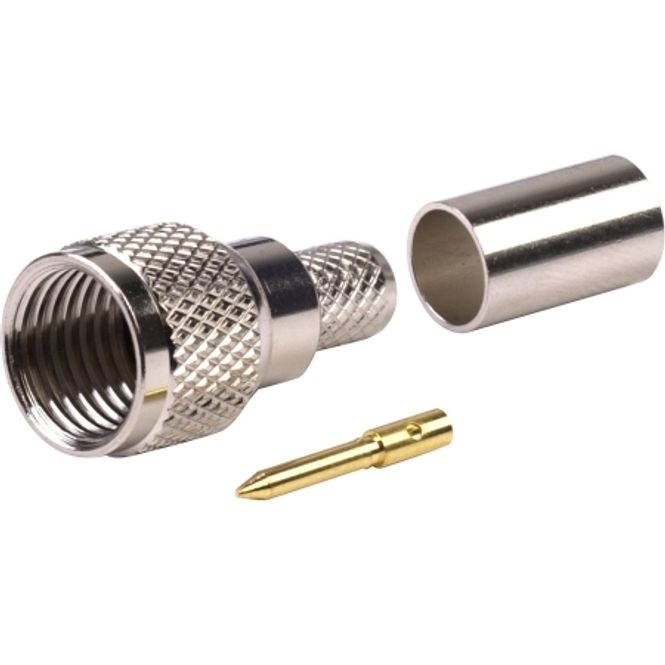

UHF Connector Press

36,-

UHF Connector Press RG58/LMR195 PL259/LMR240 PL259/LMR300 RG213/LMR400   Specs Strip Jacket to End      0.850 Qty/ Uom                    1 Each For Cable                    LMR195, LMR240, LMR300, LMR 400 RF Impedance             50 Ohms Material (Pin)               Silver Frequency Range         0-2 GHz Strip Shield to End       0.125 RF Connector               Mini UHF Male Center Pin Type            Solder Max Voltage/Pwr           300 Volts Strip Insulation to End    0.125 Install                           60981(1),88701(2) Insulator Material           Delrin

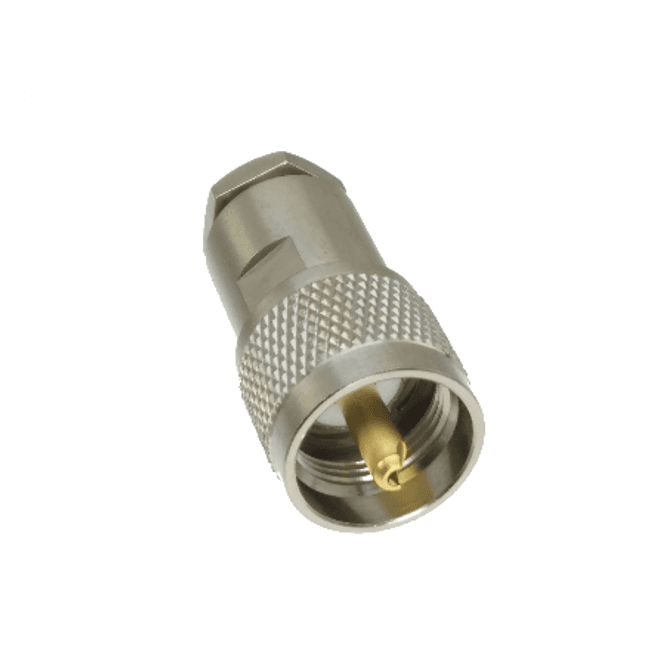

UHF Connector Skru

36,-

UHF Connector Skru RG58/LMR195 PL259/LMR240 PL259/LMR300 RG213/LMR400   Specs Series： UHF Termination Type： Coaxial Cable Gender： Plug , Male Polarity： Standard Interface Type： LMR-195, 240, 300, 400 Body Style： Straight Impedance： 50 Attachment Method： Crimp Body Material： Brass Body Plating： Nickel Dielectric Type： PTFE Frequency Range： 3GHz
